MULTI PURPOSE LIGHTING LOGIC CONVERTER

COMBINES MULTIPLE LIGHTING SIGNALS INTO LESS CIRCUITS

JUST PLUG IT IN! This device combines signals from turn signals, marking lights, or brake lights allowing you to run 2-circuit taillights (snowflakes or buggy lights) on a typical 3-circuit (or more) tail light vehicle. With this you can add more lights, or make existing lights perform multiple features.

• PLUG'N'PLAY! Designed so as not to cut existing wiring!
  Some wiring extensions or fuses may be required depending on your mounting location and setup choice.
• Custom-tailored to solve the problems found in modernizing an air-cooled VW and solving the problems that arise in these wiring systems.
• EASY TO INSTALL! Even for someone who doesn't know wiring.
• Compatible with LEDs or standard glass bulbs.
• Compatible with ANY flasher relay.
• Fixes dash indicator issues no matter what flasher relay you use.
• FREE Mount/enclosure is included!
• FREE shipping to all points in USA!
• 1-year replacement warranty on electronic parts!
• Lifetime support!
• Designed and hand-built here in USA!
• Buy 2 get 1 free!
• Other discounts on multiples... just ask!
• 12V only, up to 10A... with enough demand may design 6V.
• We support RIGHT TO REPAIR! This device can be easily repaired if damaged with off-the-shelf parts and a soldering iron.

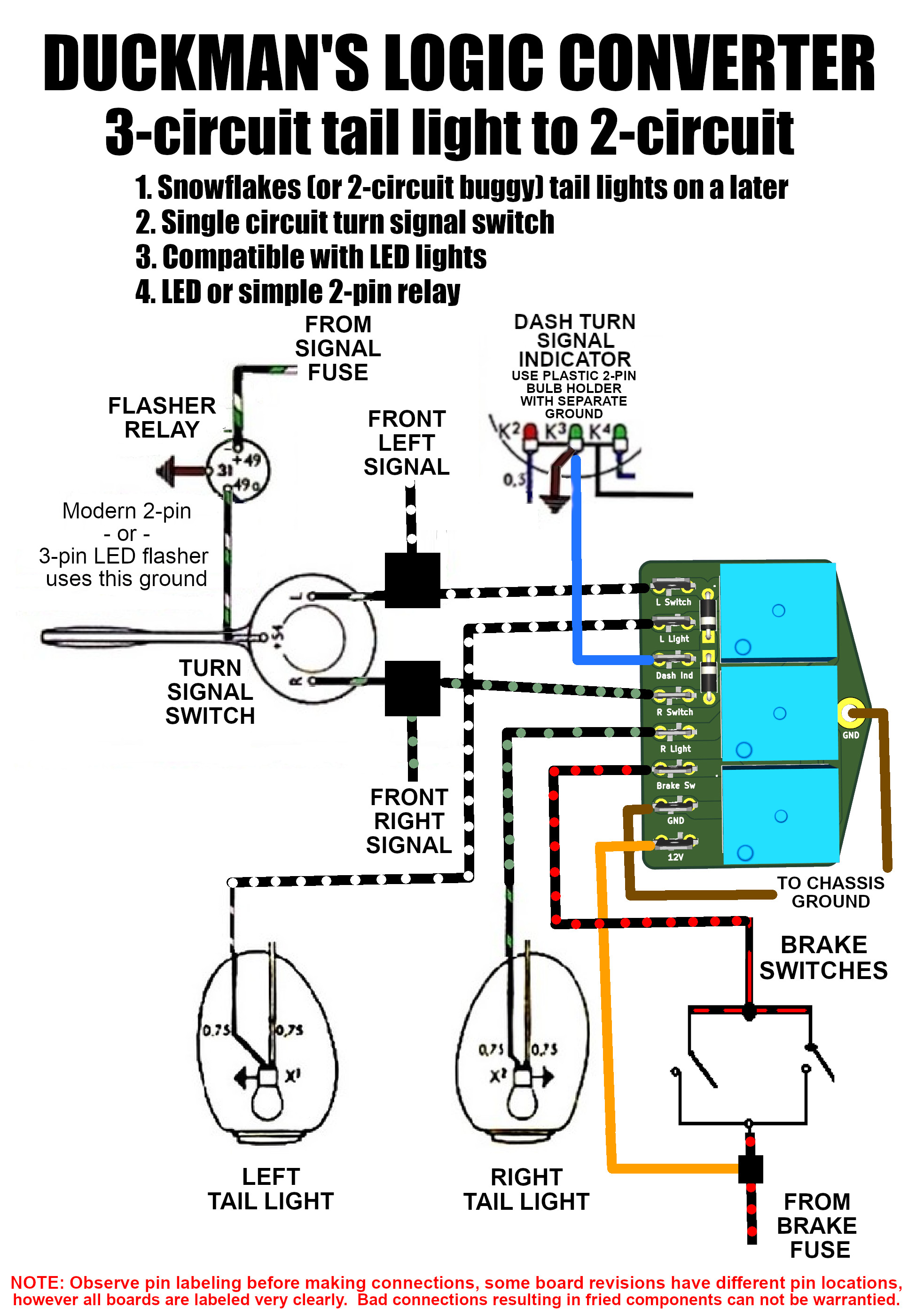

USE AS A TAIL LIGHT SIGNAL CONVERTER

3-circuit wiring harness to 2-circuit tail lights.

• Allows Beetle snowflake style tail lights or early Bus lights on later vehicle.
• Compatible with buggy lights or custom fenders as most are also 2-wire
• Allows use of ANY switch for turn signals.
• Compatible with LEDs or standard glass bulbs.
• Compatible with ANY flasher relay.
• Fixes dash indicator issues if using non-VW flasher unit.

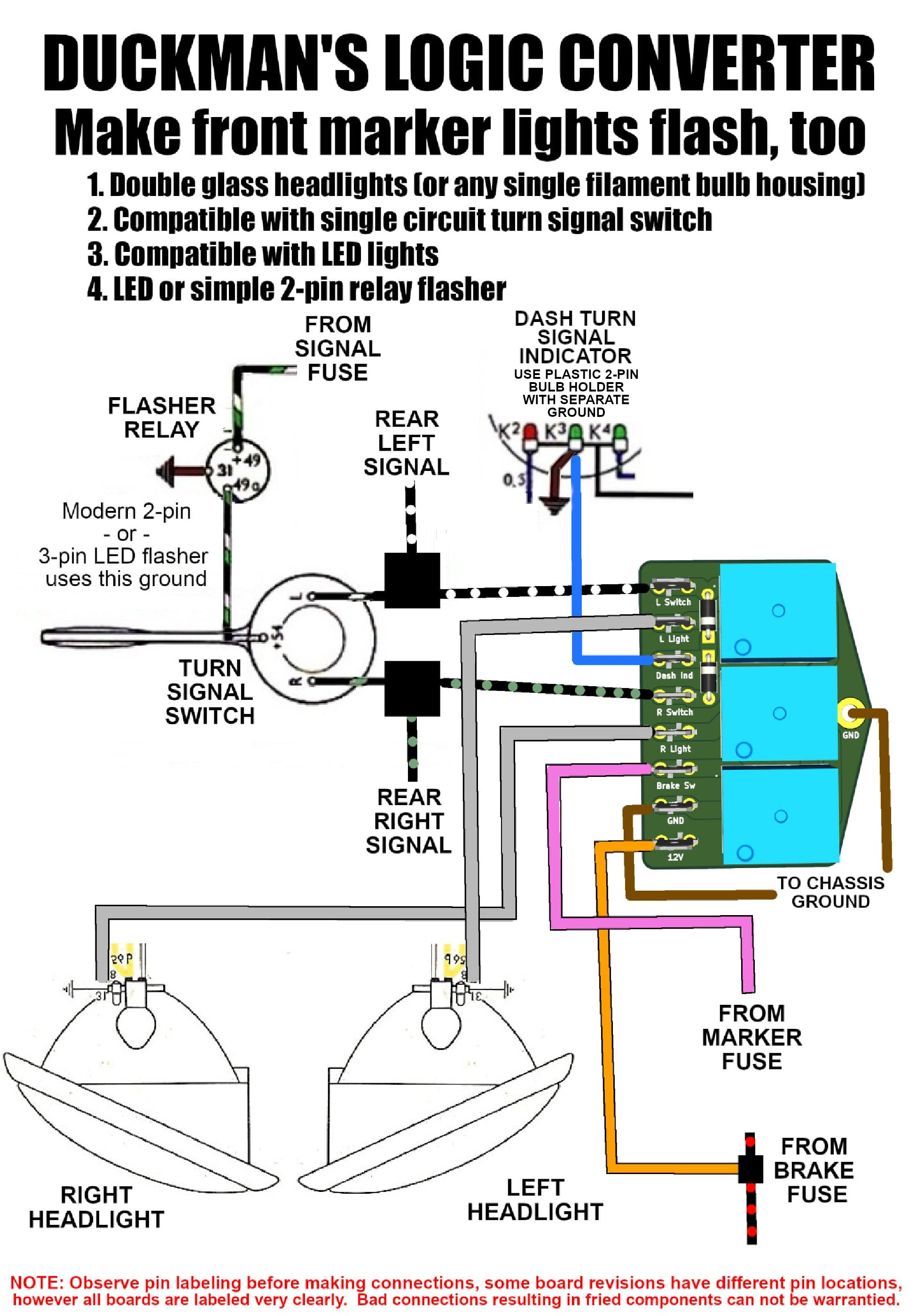

USE SINGLE FILAMENT BULBS AS DUAL PURPOSE

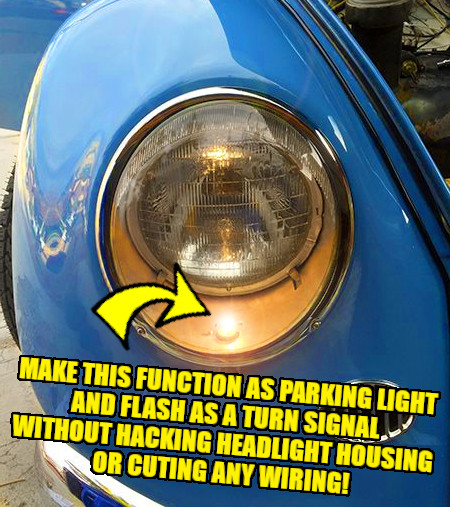

Example for front marker lights.

• Double glass (early bus or Beetle headlight) marker light can flash, too.
• Early single filament bulb signals on top of fenders can be used as running lights.
• No hacking nor modifying light housing nor bulb socket
• Compatible with a single-circuit turn signa switch
• Compatible with LEDs or standard glass bulbs.
• Compatible with ANY flasher relay.

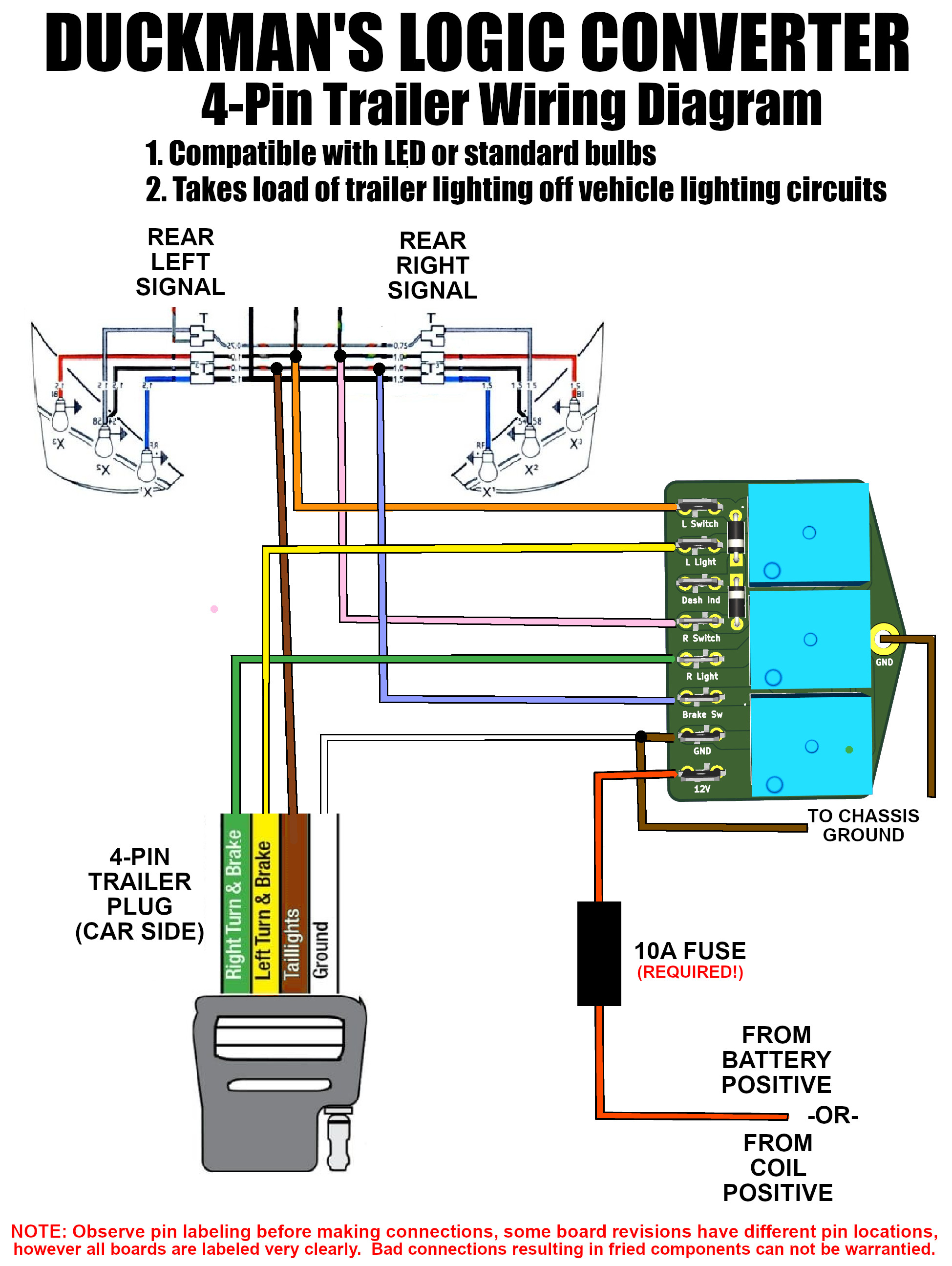

USE AS A TRAILER WIRING CONVERTER

Example for 4-pin trailer wiring harness.

• Compatible with LEDs or standard bulbs on trailer
• Isolated Power: Removes trailer wiring load from vehicle's lighting circuits.
• Dash indicator pin not used.
